Automation Grid

// 01

Purpose

Automation Grid is a Conway's-Game-of-Life-style puzzle: the player places a limited number of live cells on a 12×12 board, and those cells evolve on their own from there. The puzzle only works if the player can see what a seed will do before committing to it — that meant the simulation had to be pure and fully precomputable, so the design constraint and the architecture constraint turned out to be the same constraint. The scrub bar that lets a player step back and forth through a seed's entire future isn't a UI feature bolted onto the automaton — it's only possible because the simulation is cheap and deterministic enough to run in full on every single input.

Everything below traces back to one rule I wrote down early and kept enforcing whenever something broke:

Seed is authored. History is derived. Current is a window into History. Anything that mutates the seed triggers a full re-simulation. Nothing else writes the board.

Nearly every bug in this project traced back to a violation of that rule — a function writing Current directly, or derived marker state accumulating instead of rebuilding. Finding the invariant that made the system tractable, and learning to recognize bugs as breaches of it, was the actual engineering work here.

// 02

Implementation

Built entirely in Blueprint, chosen to iterate on the puzzle design quickly. The decisions below are structural — they'd hold in any language.

• 01 — PopulationAt

  Grid Population Helper A small pure function that counts live cells for a given generation by looping the flat cell array and running CellCount against it. Used anywhere the simulation needs to know how full a generation is without touching rendering or history state.

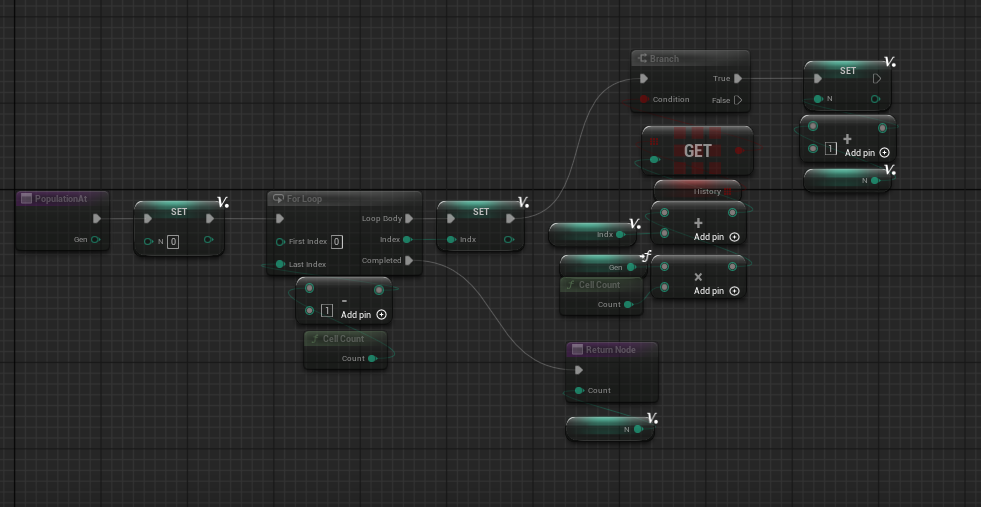

  PopulationAt()
• 02 — InitGrid & ResetToSeed

  Board Setup on Begin Play Event BeginPlay calls Init Grid to allocate the flat cell array and Instanced Static Mesh, then Reset to Seed to load the authored starting pattern. Splitting allocation from seeding keeps "build the board" and "populate the board" as two testable steps instead of one.

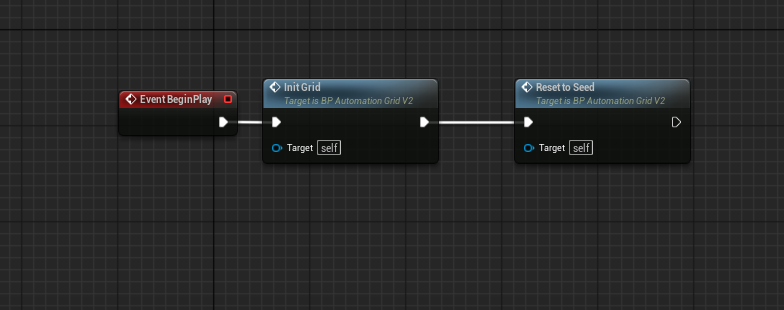

  BeginPlay
• 03 — AdvanceStep, Double-Buffered

  Step Reads Current, Writes Next Step reads the Current buffer and writes results into a separate Next buffer, swapping only once every cell has been evaluated. Reading and writing the same buffer would make the result depend on iteration order — a glider would smear instead of translate. One extra buffer is the correctness requirement for the whole simulation, then AdvanceStep chains into re-rendering and a target check.

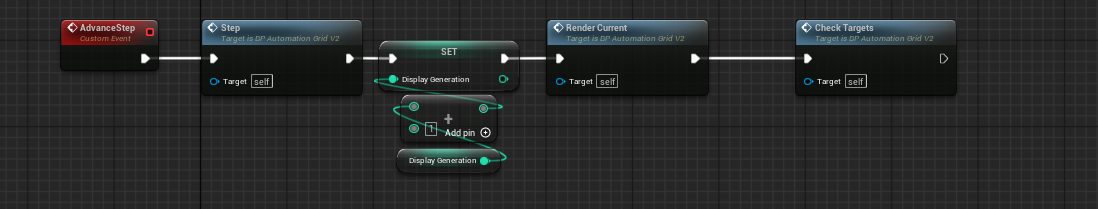

  AdvanceStep
• 04 — CheckTargets

  Win Detection & Timer Teardown Loops the target indices, checks each against the live cell set, and once every target is reached and the simulation isn't already solved, clears and invalidates the step timer by handle and plays the win Timeline. The solved/running guard (NOT Is Solved AND Is Running) exists so the win state fires exactly once, not once per remaining generation.
  CheckTargets()
• 05 — ShowGeneration

  Rebuild Derived State, Never Accumulate It Scrubbing to a generation clears every marker and recomputes Reached Targets from generation 0 up to the displayed generation, then re-renders. Accumulating markers instead would be cheaper and work perfectly right up until the player scrubs backward, at which point markers stay lit for events that haven't happened yet at that point in time. The full rebuild is trivial at this board size and correct in both directions.
  ShowGeneration()

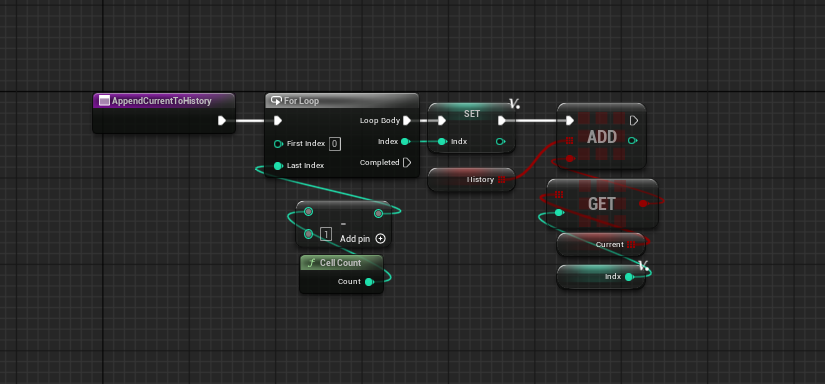

• 06 — AppendCurrentToHistory

  Flat History Buffer Blueprint can't nest containers, so the timeline is one flat array indexed by History[gen * CellCount + i] rather than an array-of-arrays — a constraint that pushed toward the layout I'd choose anyway. Every generation the simulation computes gets appended here once, which is what makes scrubbing a read against existing data instead of a re-simulation.
  AppendToHistory
• 07 — ToggleSeed

  Budgeted Seed Authoring Clicking a cell while editing toggles it in the Seed array against a Seed Budget, tracking how many placements are Used so the player can't overspend. Any successful toggle writes the seed and triggers Precompute — a full re-simulation from generation 0 — because per the invariant, nothing downstream of the seed is allowed to be patched instead of rebuilt.
  ToggleSeed()
• 08 — GPU-Side Rendering

  One Instanced Static Mesh, One Draw Call All 144 tiles are a single Instanced Static Mesh; per-instance custom data carries state and the material does the interpretation. Slot 0 carries alive/dead, written every render. Slot 2 carries marker type. Slot 3 carries each tile's normalized distance from center, written once at init — it's what drives the radial win-sweep and ripple effects, so the CPU never recomputes a per-tile distance and the whole effect is two scalar parameters animating against geometry the material already knows.

// 03

Impact

A full Precompute is 40 generations × 144 cells × 9 neighbor reads — roughly 52,000 operations per seed placement, comfortably inside a frame in the Blueprint VM. That number is the justification for the whole design: because a full re-simulation is cheap at this board size, the project never needed incremental updates, cached partials, or dirty-region tracking. Every click just reruns everything.

// 04

Media Gallery

Gameplay

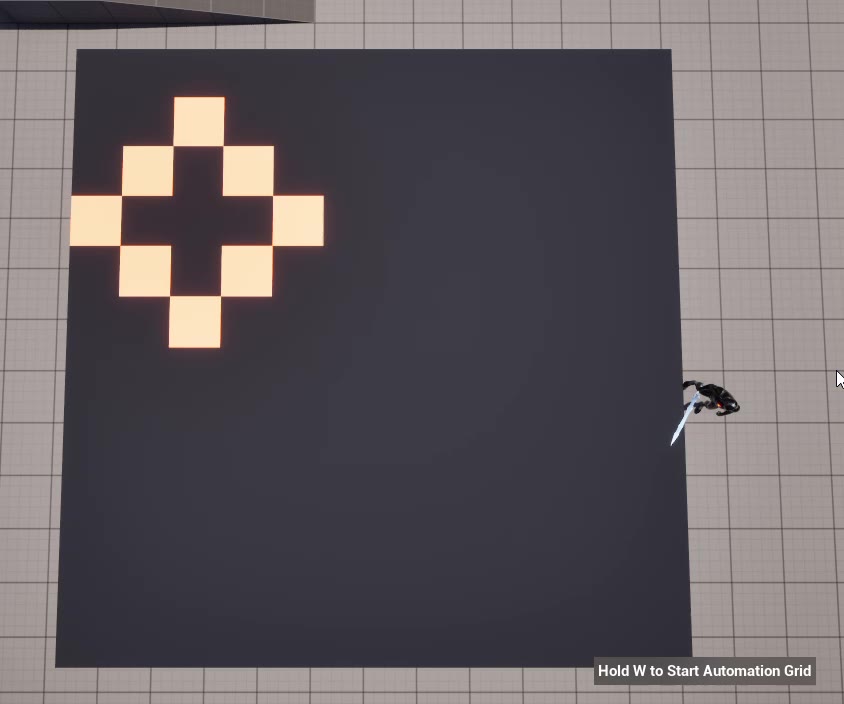

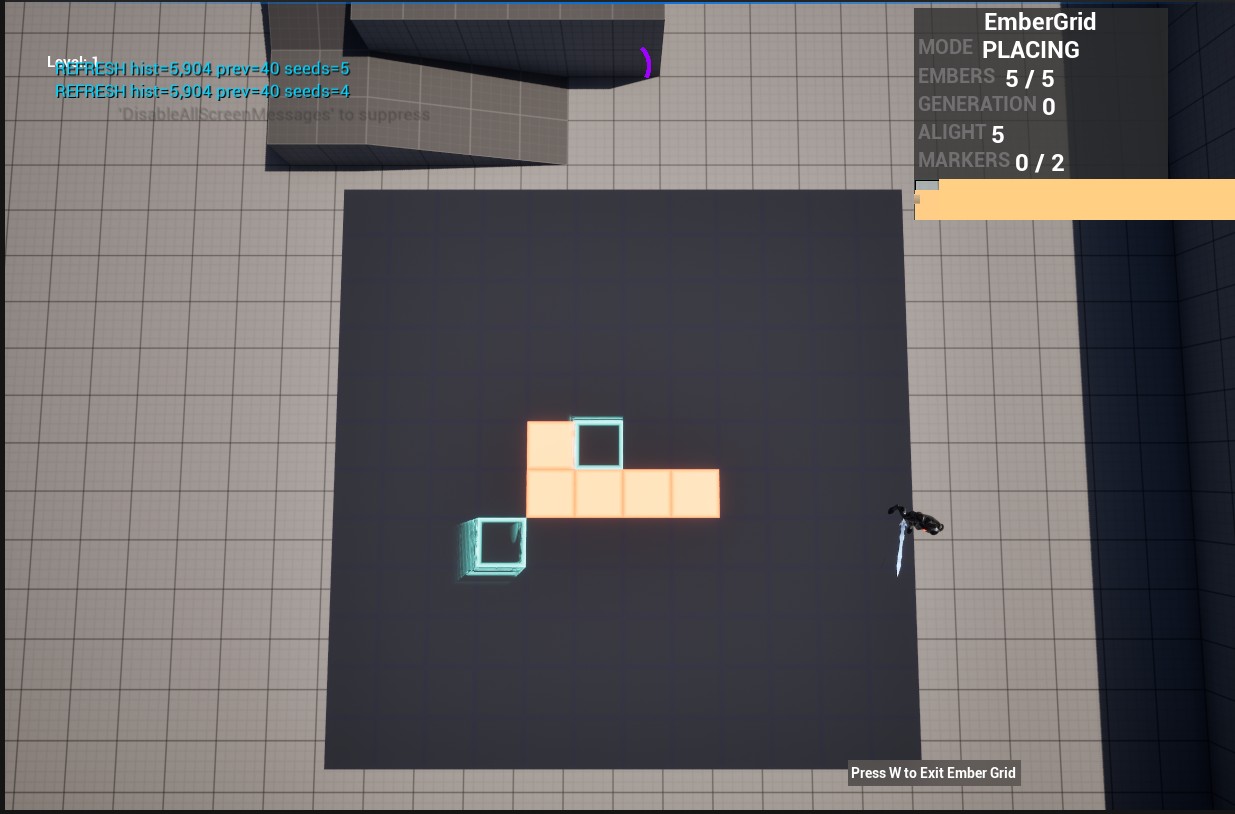

Placing the seed before simulation

Authored seed, pre-simulation

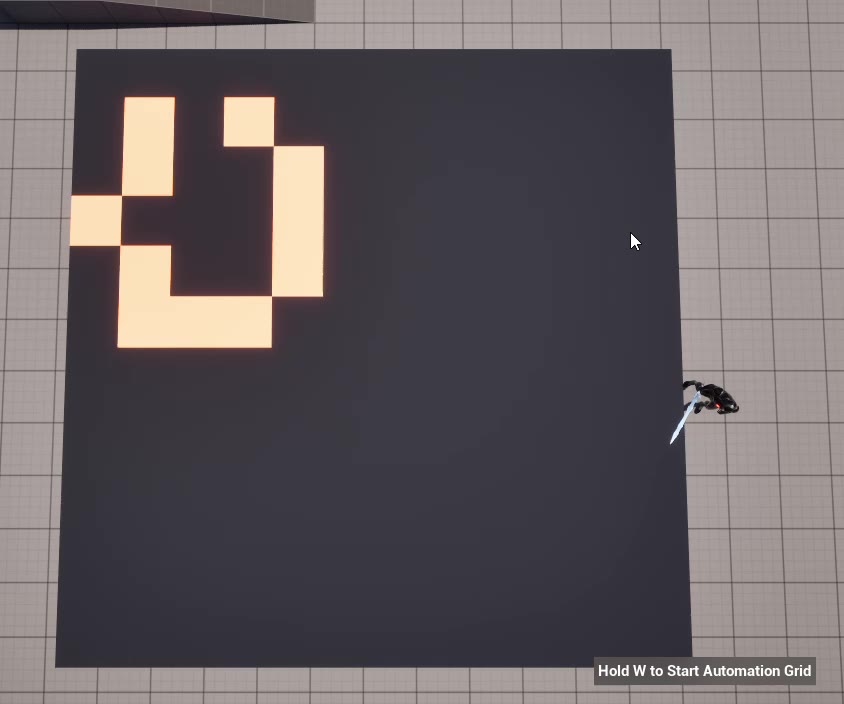

A few generations later

Blueprint Reference

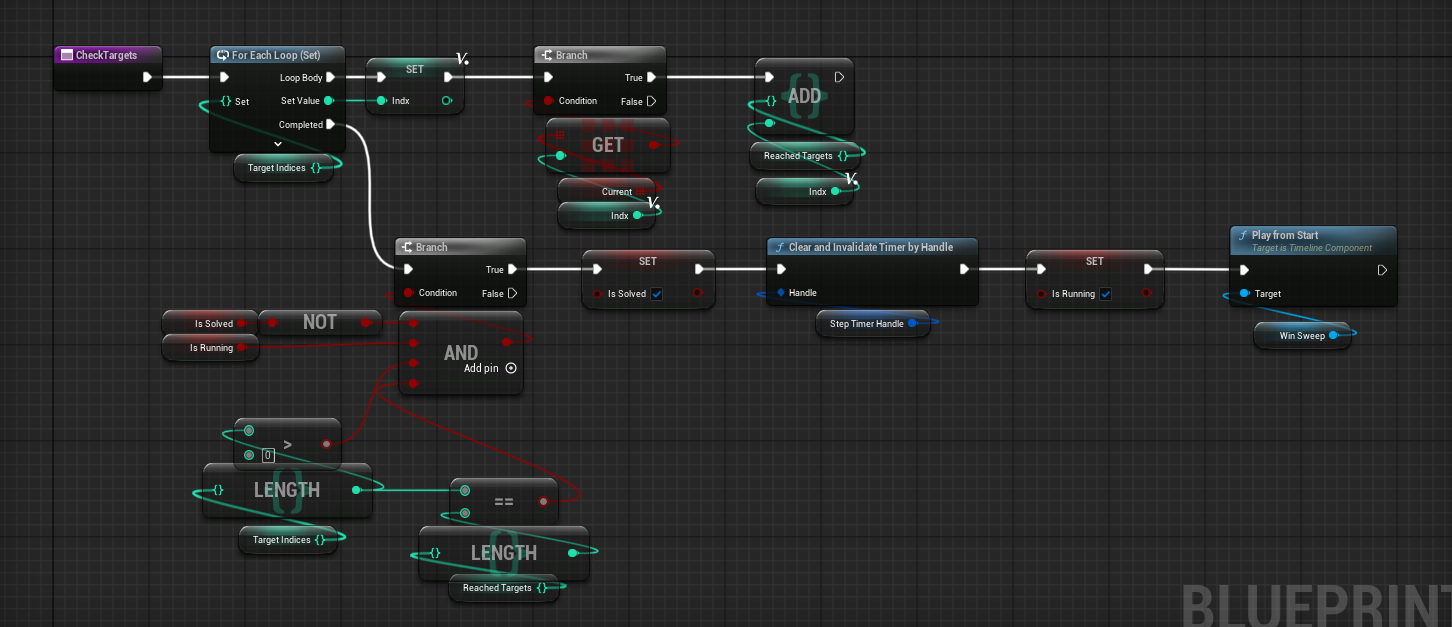

CheckTargets() — full graph

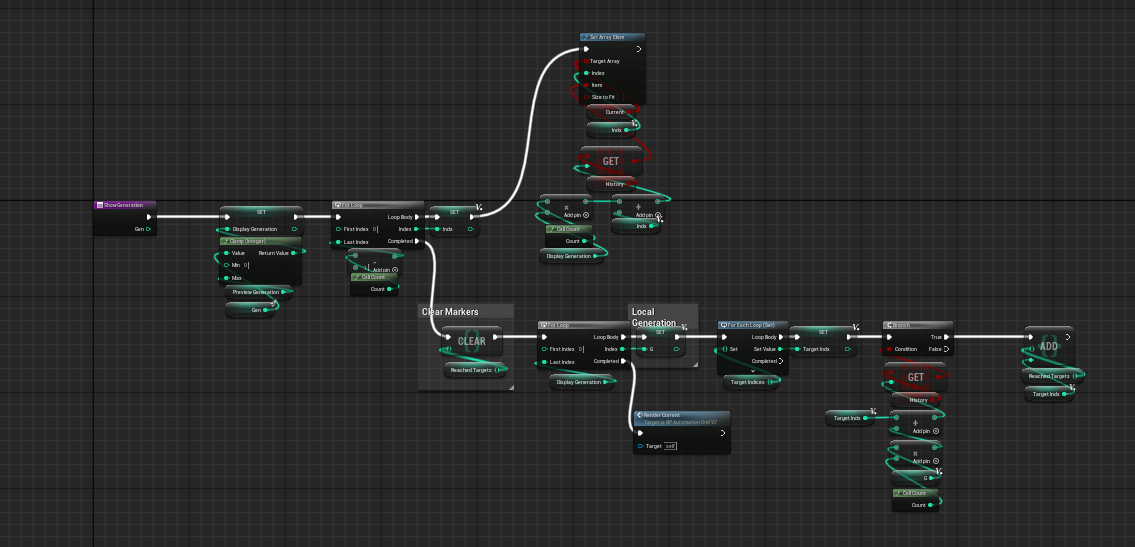

ShowGeneration() — full graph

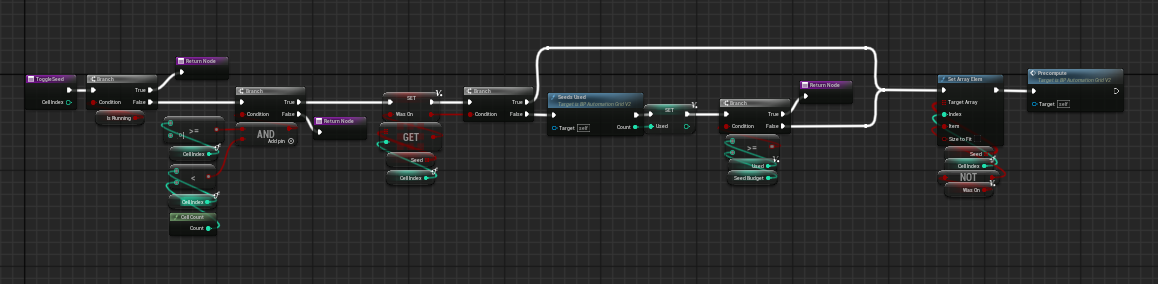

ToggleSeed() — full graph
